Product Details:
|
| Rated Capacitance: | 100AH | Energy Storage: | 5250WH |
|---|---|---|---|
| Rated Voltage: | 48V | Maximum Charge Voltage: | 58.8V |
| Internal Resistance(AC ): | ≤4mΩ | Rated Current: | >=100A |
| Maximum Continuous Discharge Current: | >=200A | Max. Peak Current: | 300A |
| Safety Test: | DC1500V | Operating Temperature Range: | -20~70℃ |
| High Light: | IEC BMS Battery Management System,Supercapacitor BMS Battery Management System,300A Supercapacitor BMS |
||

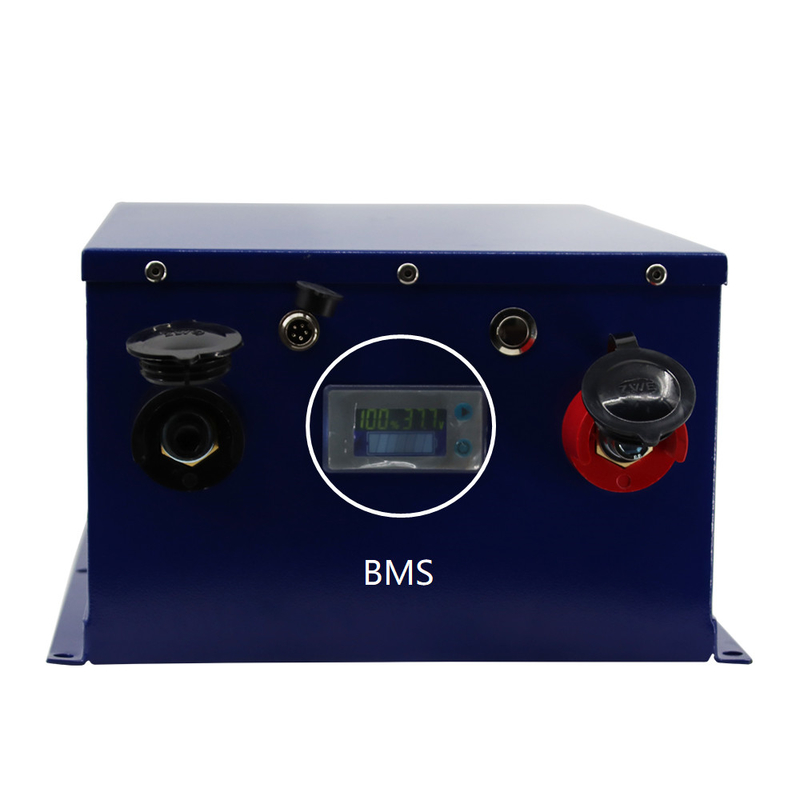

Super Capacitor Bank 48v 5250wh with battery management system
|
Rated Capacitance
|
100AH
|
|
Energy storage
|
5250WH
|
|
Rated Voltage
|
48V
|
|
Maximum Charge Voltage
|
58.8V
|
|
Minimum Discharge Voltage
|
44V
|
|
Internal Resistance(AC )
|
≤4mΩ
|
|
Rated Current
|
100A
|
|
Maximum Continuous discharge Current
|
200A
|
|
Max. Peak Current
|
300A
|
|
Safety Test
|
DC1500V
|
|
Safety standards
|
QC/T741
|
|
Operating Temperature Range
|
-20~70℃
|
|
Storage Temperature Range
|
-0-45℃
|
|
Cyclelife
|
≥20000 CYC
|
|
Nominal Weight
|
41.5±2Kg
|
|
Protection Class
|
IP21
|
