Product Details:
|
| Rated Capacitance: | 100AH Customizable | Energy Storage: | 5250WH Customizable |
|---|---|---|---|
| Rated Voltage: | 48V | Maximum Charge Voltage: | 58.8V |
| Internal Resistance(AC ): | ≤4mΩ | Rated Current: | 100A |
| Maximum Continuous Discharge Current: | 200A | Max. Peak Current: | 300A |
| Safety Test: | DC1500V | Operating Temperature Range: | -20~70℃ |
| High Light: | 1500V BMS Battery Management System,IP21 BMS Battery Management System,48V Battery BMS System |
||

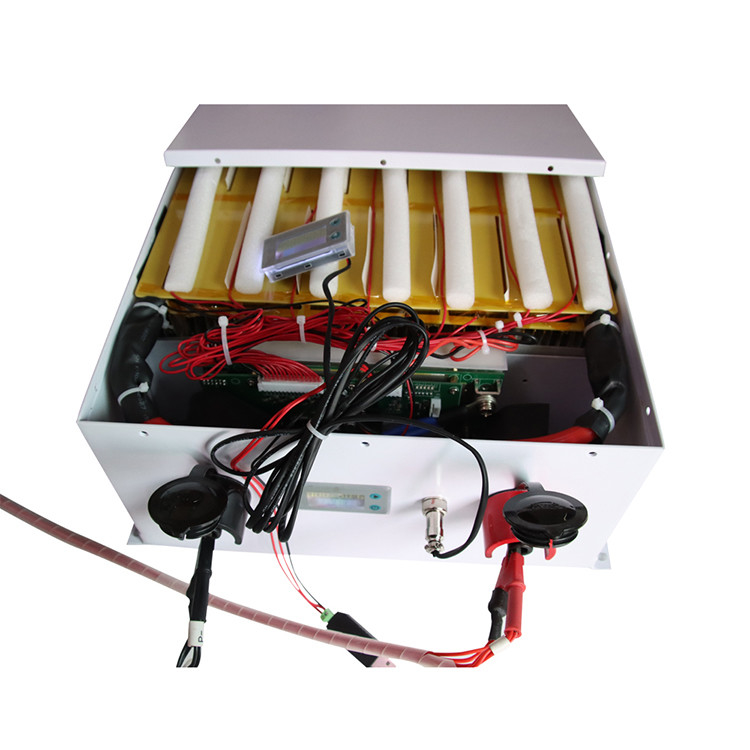

BMS Battery Management System 48v Over-Current Protection
Gonghe Energy understands that battery-powered golf carts and electric vehicles have unique power requirements. Maintaining peak capacity over longer charge intervals means higher vehicle reliability and lower annual operating costs. That's why Gonghe Energy uses the company's unique patented invention. This creates the most efficient graphene battery in the industry, delivering more watt-hours and watt-hours per liter and per kilogram than any other conventional battery on the market.
BMS Protections
Balancing function for cells
Over temperature protection
|
Rated Capacitance
|
100AH
|
|
Energy storage
|
5250WH
|
|
Rated Voltage
|
48V
|
|
Maximum Charge Voltage
|
58.8V
|
|
Minimum Discharge Voltage
|
44V
|
|
Internal Resistance(AC )
|
≤4mΩ
|
|
Rated Current
|
100A
|
|
Maximum Continuous discharge Current
|
200A
|
|
Max. Peak Current
|
300A
|
|
Safety Test
|
DC1500V
|
|
Safety standards
|
QC/T741
|
|
Operating Temperature Range
|
-20~70℃
|
|
Storage Temperature Range
|
-0-45℃
|
|
Cyclelife
|
≥20000 CYC
|
|
Nominal Weight
|
41.5±2Kg
|
|
Protection Class
|
IP21
|
