Product Details:
|
| Type: | Super Capacitor | Package Type: | Through Hole |
|---|---|---|---|
| Application: | General Purpose | Energy Storage: | 0.5wh |
| Color: | Yellow | Weight: | 70g |
| Size: | 65*35mm | Max Peak Current: | 550A |
| ESR (Equivalent Series Resistance): | ≤ 4mΩ | Warranty: | 5 Years |
| Supplier Type: | Original Manufacturer | Place Of Origin: | Guangdong, China |
| Cycle Life: | ≥100,000 | ||
| High Light: | Snap In Supercapacitor Cell,Supercapacitor Cell 2.7 Volt,Supercapacitor Replace Batteries |
||

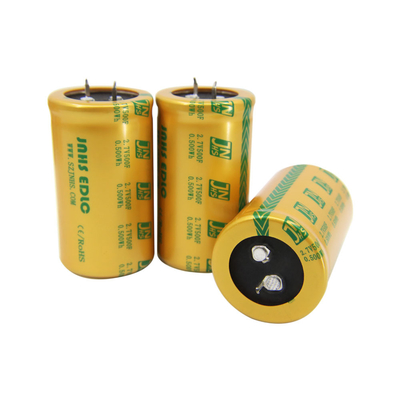

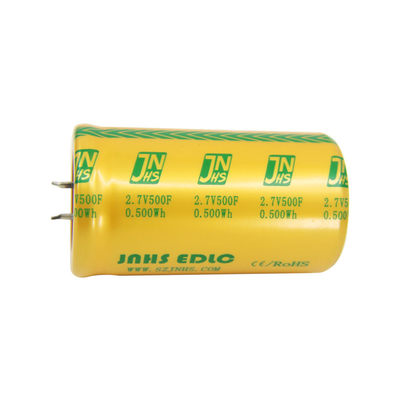

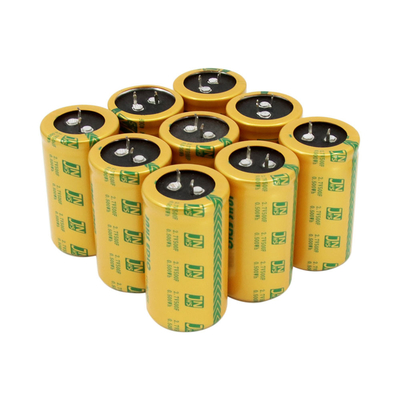

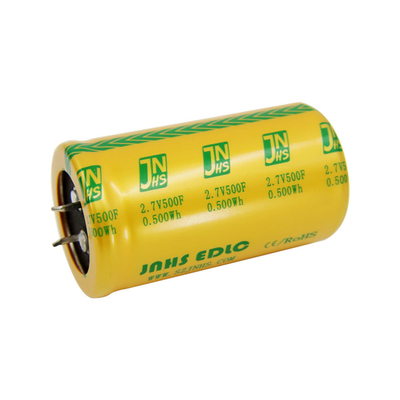

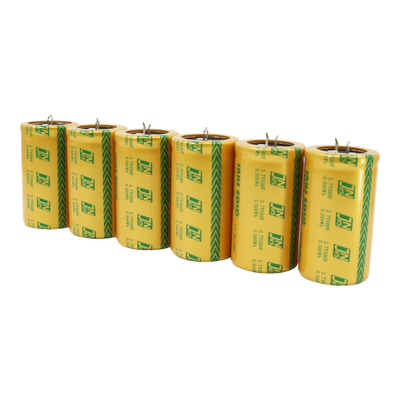

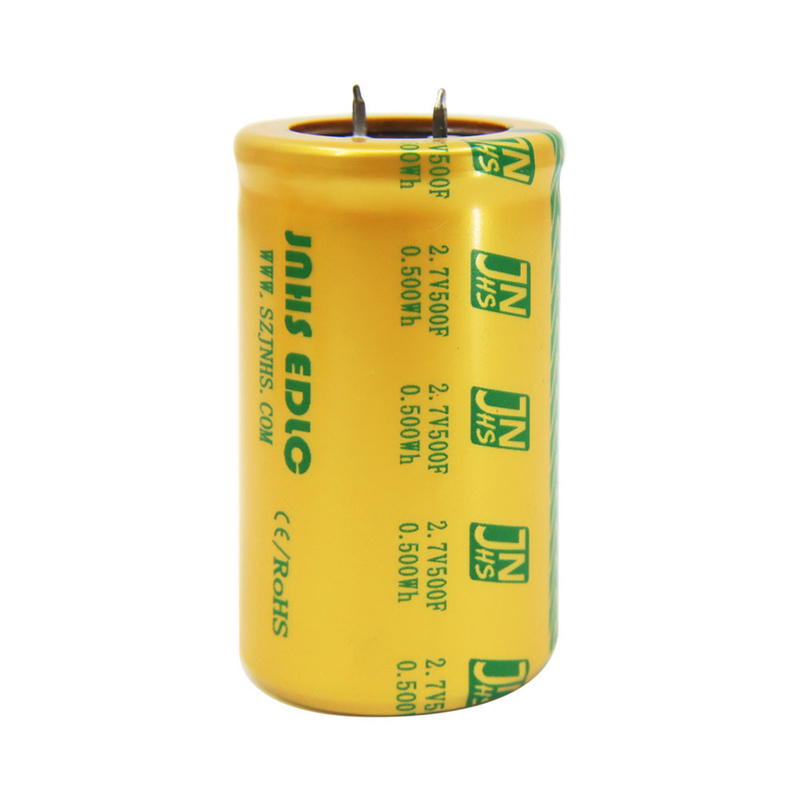

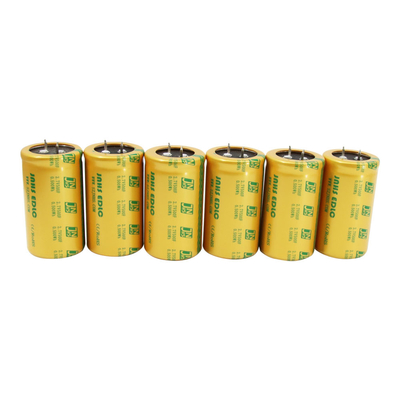

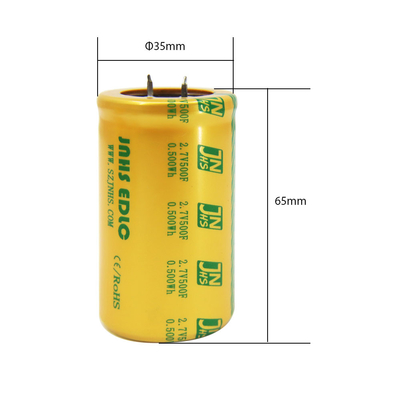

Super Capacitors Cell Snap in 2.7 Volt 500 Farad Replace Batteries
|
Product |
Super Capacitor Battery |
|
Model |
2.7V 500F |
|
Terminal |
Snap in |
|
Size |
65xΦ35mm |
|
Weight |
90g |
|
Operating temperature |
From -40 to +70℃ |
|
Terminal
|
Voltage
|
Capacity
|
Size
|
Stored Energy
|
Maximum Continuous Current
|
Maximum Peak Current
|
Weight
|
|
Snap-in
|
2.7V
|
400F
|
Φ35*60 mm
|
0.4WH
|
20A
|
450A
|
70g
|
|
Snap-in
|
2.7V
|
470F
|
Φ35*62 mm
|
0.45WH
|
20A
|
500A
|
70g
|
|
Snap-in
|
2.7V
|
500F
|
Φ35*65 mm
|
0.5WH
|
20A
|
550A
|
90g
|
|
Lug
|
2.7V
|
500F
|
Φ35*65 mm
|
0.5WH
|
20A
|
550A
|
90g
|
|
Screw
|
2.7V
|
3000F
|
Φ60*136mm
|
3WH
|
105A
|
1760A
|
500g
|
|
Radial
|
2.7V
|
500F
|
Φ14*36 mm
|
0.6WH
|
0.5A
|
1.2A
|
10g
|
|
Radial
|
2.7V
|
1000F
|
Φ14*51 mm
|
1.2WH
|
1.2A
|
3A
|
17g
|
|
Radial
|
2.7V
|
3000F
|
Φ18*65 mm
|
3WH
|
5A
|
10A
|
39g
|
|
Radial
|
2.7V
|
5000F
|
Φ24*69 mm
|
6WH
|
8A
|
15A
|
65g
|
|
Radial
|
3.6v
|
2000F
|
φ18*50 mm
|
3.27WH
|
2A
|
6A
|
29g
|
|
Radial
|
4.2v
|
4000F
|
φ24*69 mm
|
13WH
|
6A
|
30A
|
70g
|
|
Screw
|
2.7V
|
100000F
|
Φ60*138mm
|
60WH
|
150A
|
300A
|
810g
|
|
Paper
|
4.2V
|
21000F
|
220*128*7.5mm
|
75WH
|
40A
|
60A
|
350g
|
|
Paper
|
4.2V
|
18000F
|
220*128*7.5mm
|
60WH
|
60A
|
100A
|
350g
|
