Product Details:
|
| Type: | SUPER CAPACITOR BATTERY CELLS | Size: | 60X138mm |
|---|---|---|---|
| Nominal Voltage: | 2.7V | Cycle Life: | More Than 110000 Cycles |
| Nominal Capacity: | 100000F | Warranty: | 3 Years |
| Application: | EV,Solar Energy Storage | Certification: | CE,MSDS |
| Material: | Super Capacitor Battery Material | Temperature Range: | -40 To +70 |
| High Light: | EV Supercapacitor Cell,Cylindrical Supercapacitor Cell,Multipurpose Super Capacitor 2.7V |
||

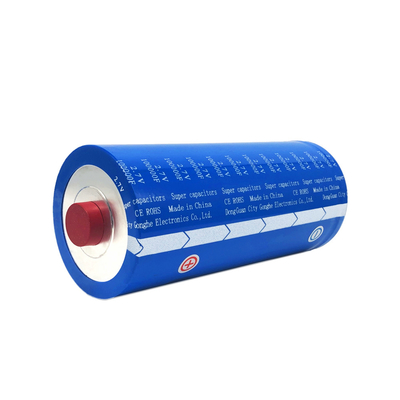

2.7V100000F Cylindrical Type Super Capacitor Battery Storage Model Low Temperature Performance And Fast Charge
| Model Name | 2.7V100000F Super Capacitor Battery Cells |
| Place of Origin | Dongguan, Guangdong, China |
| Working Temperature | -40 degree to +70 degree |
| ESR | 0.6mΩ |
| Leakage Current | ≤15mA |
| Cycle Time | 110,000 Times |
| Normal Current | 28A |
| Stored Energy | about 60WH |
| Maximum Continuous Current | 150A |
| Maximum Peak Current | 300A |

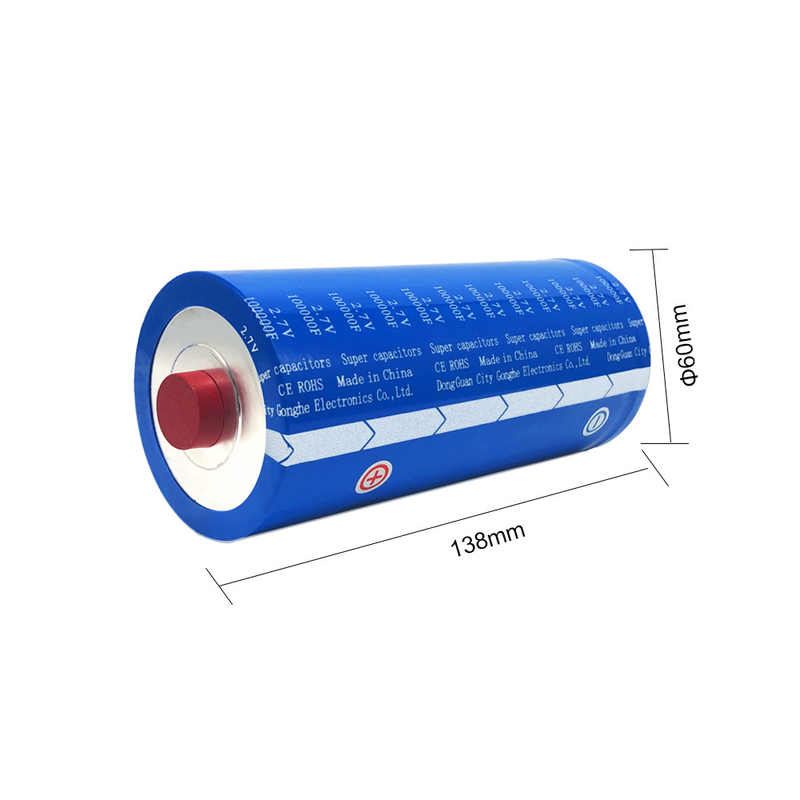

| Size | 60x138 mm |
| Weight | about 820g |
| Application | Telecom, Solar Energy Storage |
This Cell Advantage:
1. Long Life- our super capacitors can do 110,000 times or even more.
2. Safe- Until now we didn't have find one explode accident.
3. Fast Charge & High Efficiency- Our capacitor can be recharged full in 5-10 minutes
4. Wide Temperature- Our capacitor temperature range can do from -40 degree to +70 degree
5. Lower Self Discharge Than Lithim Battery
What's Super Capacitor?
A supercapacitor (SC), also called an ultracapacitor, is a high-capacity capacitor with a capacitance value much higher than other capacitors, but with lower voltage limits, that bridges the gap between electrolytic capacitors and rechargeable batteries. It typically stores 10 to 100 times more energy per unit volume or mass than electrolytic capacitors, can accept and deliver charge much faster than batteries, and tolerates many more charge and discharge cycles than rechargeable batteries.
Supercapacitors are used in applications requiring many rapid charge/discharge cycles, rather than long-term compact energy storage — in automobiles, buses, trains, cranes and elevators, where they are used for regenerative braking, short-term energy storage, or burst-mode power delivery. Smaller units are used as power backup for static random-access memory(SRAM).
Email: jasmine@gongheenergy.com
Mobile/Wechat/Whatsapp: +8613662887321
Skype: Shallmay1
FAQ
Q: Is it a super capacitor or battery? A: It’s a combination of super capacitor and battery, which combines power density of super capacitors and energy density of batteries.
Q: Are you a trading company or manufacturer? A: We are a professional manufacturer of super capacitor batteries. We promise all products are original and brand new.
Q: What is your delivery time? A: Cells normally only take 1-3 days lead time; modules will take about 15-20 business days.
Q: How about your warranty? A: Under standard operating condition, we guarantee no less than 20,000 time life cycles.
Q: Can you do OEM or ODM? A: OEM and ODM are both acceptable. Please contact us for more details.
Q:Do you have a catalog? A:Yes. Please contact us for catalog and latest price list.
Q: What kind of certificates do you have?
A: We can provide CE,MSDS,UN38.3 etc.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
