Product Details:
|
| Terminal: | Snap-in | Size: | Φ35*65 Mm / Customized |
|---|---|---|---|
| Color: | Blue / Customized | ESR: | 4mΩ |
| Leakage Current: | 《1mA | Stored Energy: | 0.5WH |
| Maximum Continuous Current: | 20A | Maximum Peak Current: | 550A |
| High Light: | ODM Super Capacitor Battery,35x65mm Super Capacitor Battery,Farad Ultra Capacitors |
||

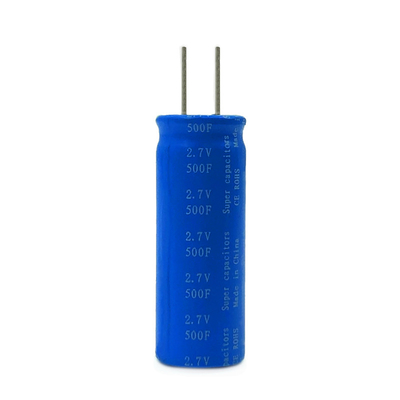

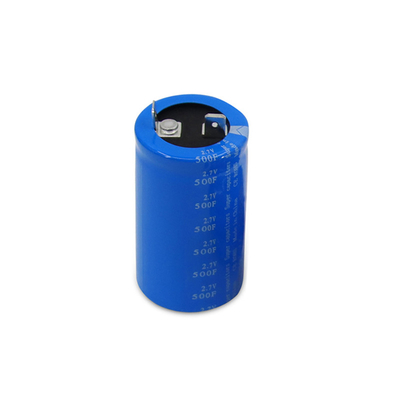

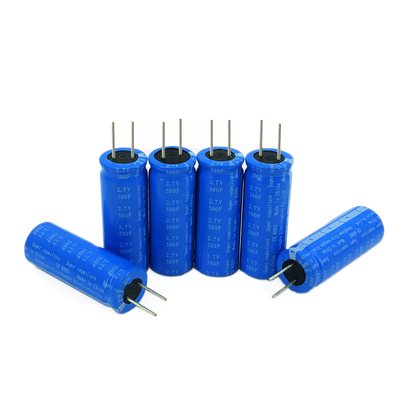

Quick detail of 2.7V 400F Super Capacitor Cell
| Model Number | TC27470SI |
| Terminal | Snap-in |
| Voltage | 2.7V |
| Capacity | 500F |
| Size | Φ35*65 mm / Customized |
| ESR | 5mΩ |
| Leakage Current | <1mA |
| Stored Energy | 0.5WH |
| Maximum Continuous Current | 20A |
| Maximum Peak Current | 550A |
| Weight | 90g |
| OEM/ ODM | Accept OEM / ODM Customize |
| Certification | RoHD/CE/ISO9001 |
| Warranty | 3 Years |
| Place of Origin | Guangdong, China |
| Application | General Purpose |
Feature Of 2.7V 500F Super Capacitor Cell
Fast charge
Small self discharge
Good low-temperature performance
Low long-term cost
Long cycle life
High Safety And Reliability
Nail Penetration Test: No Explosive, No Fire
Vibration Test: No Explosion, No Fire
Drop Test: No Explosion, No Fire
Crush Test: No Explosion,No Fire
Overcharge Test: No Explosion,No Fire
Over Discharge Test: No Expllosion, No Fire
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to North America(30.00%),Western Europe(30.00%),Domestic Market(30.00%),Eastern Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. why should you buy from us not from other suppliers?
Dongguan City Gonghe Electronics Co.,Ltd. is a high-tech enterprise integrating R&D, production and sales of super capacitor battery. It is committed to the R&D of power energy storage technology of super capacitor battery and providing complete solutions.
About company:
a)Joint R&D with Tsinghua University, own more than 20 patents of invention and utility model .
b)14 years of manufacturing experience.
c)Support ODM and OEM customization to meet the different needs of customers.
d)Dust-free workshop, assure production quality.
e)Possible to MAKE DELIVERY on PAYMENT DATE,delivery time is guaranteed.
About products:
a)Eco-friendly,energy saving and emission reduction.
b)Approved by CE ROHS,IEC,ISO9001 AND MSDS.
c)The Largest energy density super capacitor battery.
d)Over 20,000 cycle life.
e)5-30 minutes to fully charge.
f)-40℃ to 70℃ range of operating temperature. Suitable for harsh condition.
4. what services can we provide?
Accepted Delivery Terms: CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Russian,Korean.
5.Can super capacitors replace batteries?
Supercapacitors are superior to traditional capacitors due to their ability to store and release energy; however, they haven't been able to replace the function of conventional Lithium-Ion batteries.
