Product Details:
|
| Product Name: | 48V1050WH Telecom Battery Systems Telecommunication Battery 48v Deep Cycle Battery | Battery Type: | 4.2V21000F Super Capacitor Battery Cell |
|---|---|---|---|
| Cycle Life: | 20000 Times | Warranty: | 1 Year |
| Weight: | 27KGS | Color: | Customized/Silver |
| Nominal Capacity (ah): | 3900WH | Bms: | BMS |
| Battery Cell: | Super Capacitor Battery Cells | Oem/odm: | Available |
| Rated Voltage: | 48VDC | Operating Temperature: | -40 To +70 ℃ |
| Lead Time: | 7days After Payment | Shipment Method: | Express/air/sea |
| High Light: | IP30 Telecom Battery Systems,Waterproof Telecom Battery Systems,Ultraportable Telecom Batteries For Solar |
||
Product Description
| Product Name | GH 48V 1050Wh Module |
| Serial parallel mode | 14S1P |
| Rated Capacitance | 1500F |
| Energy Storage | 1050Wh |
| Rated Voltage | 48V |
| Maximum Charge Voltage | 54.6V |
| Minimum Discharge Voltage | 35.2V |
| Internal Resistance(AC) | ≤ 15mOhm |
| Rated Current | 20A |
| Maximum Continuous Current | 40A |
| Max. Peak Current | 60A |
| Safety Test | DC1500V |
| Operating Temperature Range | minus 20 to plus 60 ℃ |
| Storage Temperature Range | minus 20 to plus 55 ℃ |
| Cycle life | ≥ 20,000 |
| Protection Class | IP30 |
| Product Weight | 9kg |

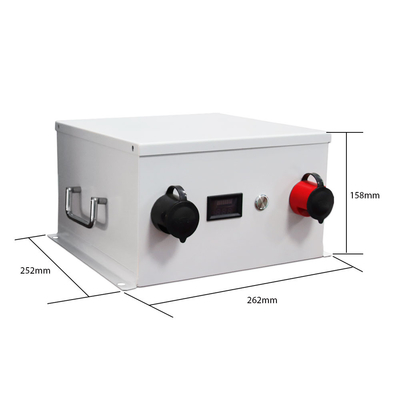

| Product Size ±5mm | 262*252*158mm |
| Warranty Time | 5 years |
Advantages of Supercapacitor Batteries
(1) The battery charging speed is faster: the battery can be charged for ten seconds to ten minutes to reach more than 95% of its rated capacity.
(2) High work efficiency and high energy ratio: the power energy is large, which can instantly form large energy, the loss in the whole process of tip discharge is small, and the energy cycle is about five times faster than that of the battery.
(3) The tip discharge efficiency is fast and resistant to charging: it is resistant to ultra-high temperature, and it can continue to work when the high temperature reaches 75 degrees Celsius, and it can also continue to work at ultra-low temperature -40 °C.
(4) Long service life and no memory effect: long cycle life, deep-level charge-discharge cycle application frequency can reach 100,000 to 500,000 times, and there is no "memory effect"
(5) The raw materials for the production of supercapacitor batteries are green and environmentally friendly: the structure of raw materials is natural and pollution-free, and the waste and garbage produced will not form harmful objects. It is a very ideal green and environmentally friendly battery.
