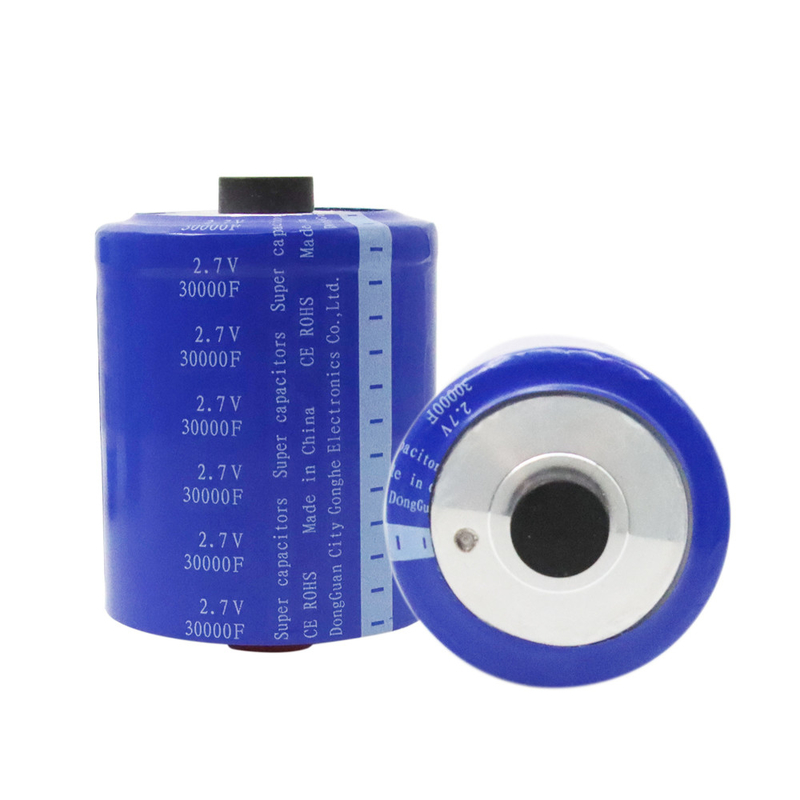

High Energy Density2.7V 30000 Farad Ultracapacitor Bank For Solar Energy Storage

Since 2008, graphene super capacitors have been powering the world with 20,000 cycles and great safety.

Supercapacitors are constructed with two metal foils (current collectors), each coated with an electrode material such as activated carbon, which serve as the power connection between the electrode material and the external terminals of the capacitor. Specifically to the electrode material is a very large surface area. In this example the activated carbon is electrochemically etched, so that the surface area of the material is about 100,000 times greater than the smooth surface. The electrodes are kept apart by an ion-permeable membrane (separator) used as an insulator to protect the electrodes against short circuits. This construction is subsequently rolled or folded into a cylindrical or rectangular shape and can be stacked in an aluminum can or an adaptable rectangular housing. The cell is then impregnated with a liquid or viscous electrolyte of organic or aqueous type. The electrolyte, an ionic conductor, enters the pores of the electrodes and serves as the conductive connection between the electrodes across the separator. Finally, the housing is hermetically sealed to ensure stable behavior over the specified lifetime.

Dongguan GongHe Electronic ltd,.Co is a national high-tech enterprise, which can provide customers with complete power storage technology solutions, and has been applied, verified and recognized by high-quality customers in military, aerospace, nuclear power and other markets in batch. The company has more than twenty national invention patents and utility model patents, etc.. Our products are widely used in new energy vehicles, energy storage power plants, communication UPS, solar street lights, solar power generation, home energy storage, power systems, power tools, aviation power, military products, ship power and other fields. In addition, we are committed to continuously developing new products to meet the different requirements of different customers. We actively build a capacitor battery recycling system to contribute to the realization of sustainable development of human society.

FAQ

Q: Is it a super capacitor or battery? A: It’s a combination of super capacitor and battery, which combines power density of super capacitors and energy density of batteries.
