Product Details:
|
| Type: | Super Capacitor | Size: | 60*138mm |
|---|---|---|---|
| Nominal Voltage: | 2.7V | Cycle Life: | More Than 20000 Cycles |
| Nominal Capacity: | 100000F | Warranty: | 3 Years |
| Certification: | CE,MSDS,ROHS,ISO | Capacitance Tolerance: | 5%,20%or+20% |
| Package: | Cartons,Wooden Box Packing | Lead Time: | In Stock |
| Frequency: | 50/60Hz | Shipment Method: | By Sea And By Air |
| High Light: | Rechargeable super capacitor battery for car,2.7V super capacitor battery for car,100000F super capacitor for car |
||
2.7V100000F Cylindrical Type Super Capacitor Battery Cells Fast Charge Storage Model Rechargeable Super Capacitor
A supercapacitor (SC), also called an ultracapacitor, is a high-capacity capacitor with a capacitance value much higher than other capacitors, but with lower voltage limits, that bridges the gap between electrolytic capacitors and rechargeable batteries. It typically stores 10 to 100 times more energy per unit volume or mass than electrolytic capacitors, can accept and deliver charge much faster than batteries, and tolerates many more charge and discharge cycles than rechargeable batteries.[2]
| Model Name | 2.7V100000F Super Capacitor Battery Cells |
| Place of Origin | Guangdong, China |
| Working Temperature | -40 degree to +70 degree |
| ESR | 0.6mΩ |
| Leakage Current | ≤15mA |
| Cycle Time | 110,000 Times |
| Normal Current | 28A |
| Stored Energy | 60WH |
| Maximum Continuous Current | 150A |
| Maximum Peak Current | 300A |

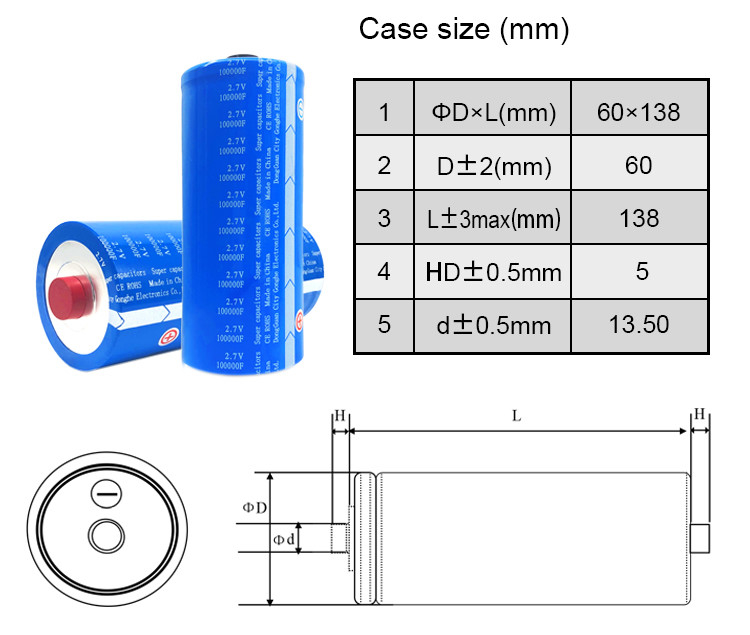

| Size | 60x138 mm |
| Weight | 820g |
|
Application |
Telecom, Energy Storage, EV etc. |
Advantage:
1. Long Life- our super capacitors can do 110,000 times or even more.
2. Safe- Until now we didn't have find one explode accident.
3. Fast Charge & High Efficiency- Our capacitor can be recharged full in 5-10 minutes
4. Wide Temperature- Our capacitor temperature range can do from -40 degree to +70 degree
5. Lower Self Discharge Than Lithim Battery
6. Simple Pack Circuits
7. Smaller Size
8. Lighter Weight
Supercapacitors are used in applications requiring many rapid charge/discharge cycles, rather than long-term compact energy storage — in automobiles, buses, trains, cranes and elevators, where they are used for regenerative braking, short-term energy storage, or burst-mode power delivery. Smaller units are used as power backup for static random-access memory (SRAM).
Supercapacitor energy storage modules with exceptional long life, high depth of discharge & high temperature endurance.
FAQ
Q: Is it a super capacitor or battery? A: It’s a combination of super capacitor and battery, which combines power density of super capacitors and energy density of batteries.
