Product Details:
|
| Rated Input: | Voltage 110/120Vac | Input Voltage Range: | (90Vac-140Vac) ±2% |
|---|---|---|---|
| Frequency: | 50Hz/ 60Hz | Overload/short Circuit Protection: | Circuit Breaker |
| Efficiency: | >95% | Maximum Bypass Overload Current: | 40A/63A |
| Rated Output Voltage (Vac): | 120Vac (100/105/110Vac Configurable) | Communication Interface: | USB/RS485(/WiFi/GPRS)/Dry Node Control |
| Maximum Output Power: | 4200W/5000W | Battery Voltage Range: | 40 -60Vdc |
| High Light: | 110V Solar Inverter System,120V Solar Inverter System,5000W Solar Inverter With Battery Storage |
||

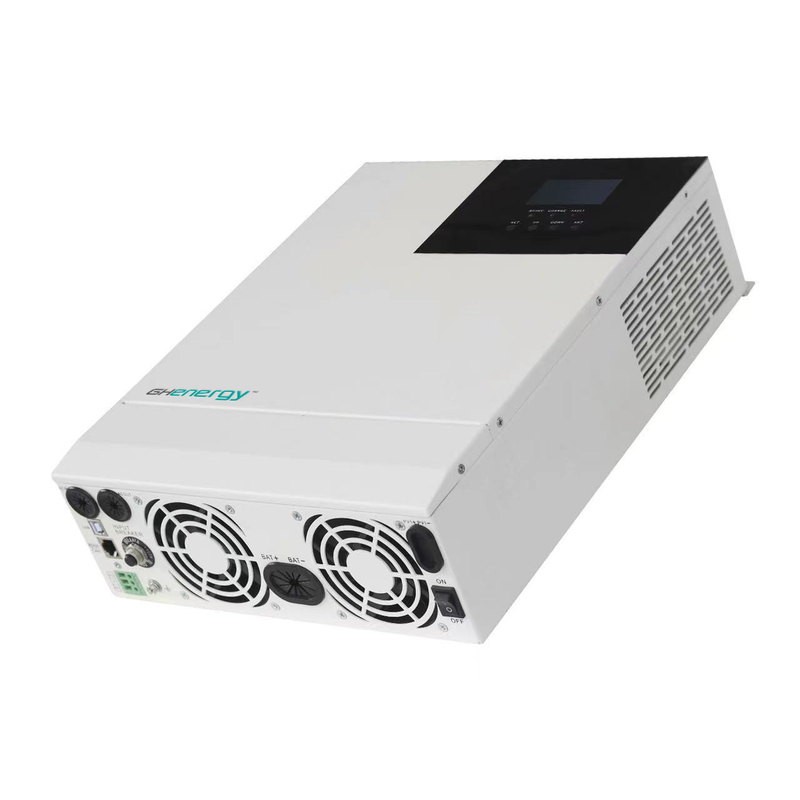

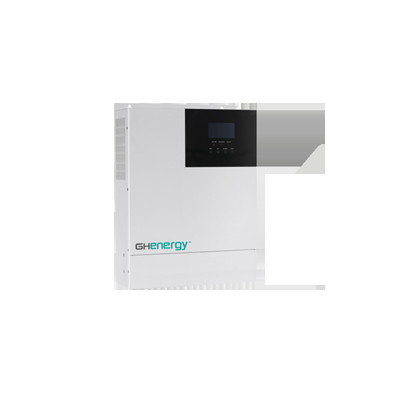

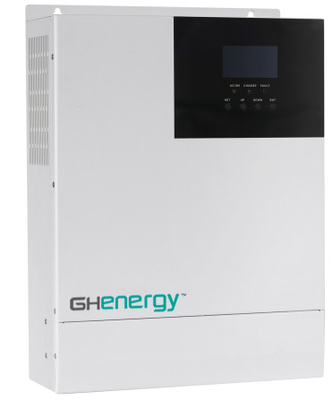

48v5kw Solar Power Inverter Energy Storage Control Integrated
HF48-H series is a combination of solar storage & electric storage, positive wave transmission in one type
It adopts DSP control, and has response
The HF48-H series is a combination of solar storage & electric storage and positive wave transmission.
It adopts full-voltage electric double closed-loop system and advanced SPWM technology to transmit pure positive wave.
It has two types of transmission, circuit and variable transmission, and is prepared to supply power without interruption.
● With 4 electric modes to choose from: sun only, electric first, sun first, combined electric.
● Advanced MPPT technology, up to 99.9%.
● LCD crystal screen design, 3 LED indicators, dynamic display of the operating status of the data.
● ON/OFF type switch system transmission.
● Power with power mode power, load loss.
● Adopt intelligent adjustable speed wind, heat dissipation, long life.
● It comes with lithium battery live function, support lead battery and lithium battery.
● It has many protection functions, 360° all protection.
● There are prepared short circuit protection, over-undervoltage protection, overload protection, protection, etc.
