Product Details:
|
| Type: | Super Capacitor Bank | Certificate: | RoHS/CE/ISO9001 |
|---|---|---|---|
| Cycle Life: | More Than 20000times | ESR (Equivalent Series Resistance): | 2.2 MΩ |
| Warranty: | 3 Years | Operating Temperature: | -40°C ~ 70°C |
| Package: | Cartons,Wooden Box Packing | Application: | General Purpose,Power,Automotive,AC / Motor |
| Capacitance: | 500F | Size / Dimension: | 417*68*185mm |
| Shipment Method: | By Sea And By Air | Capacitance Tolerance: | 20%or+20% |
| Model number: | GHT16V108FL/GHT16V200FL/GHT16V500FL |
| Place of origin: | Guangdong,Cn |

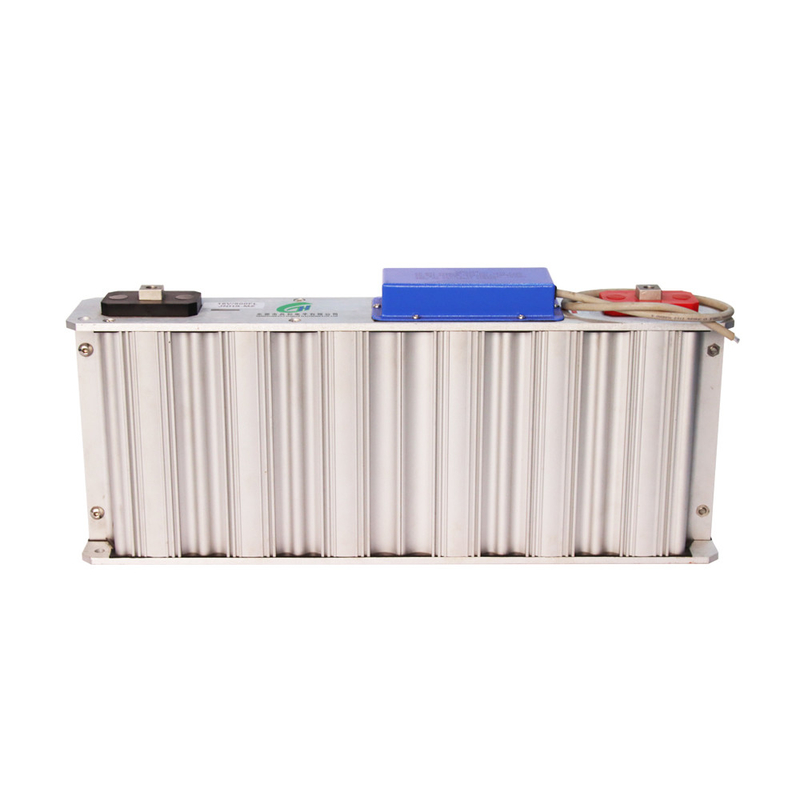

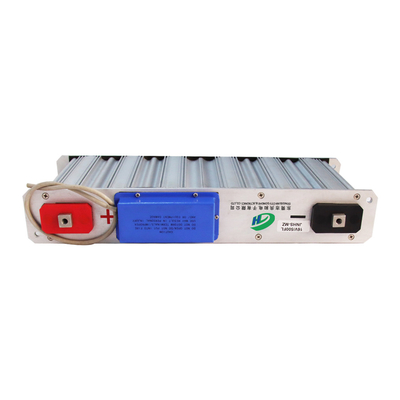

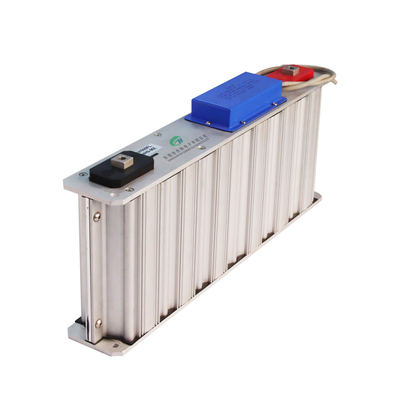

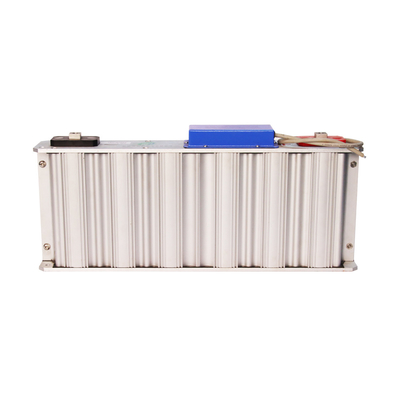

| Product name: | Super capacitor module/super capacitor pack |
| weight: | 2.7/3.5/5.3 kg |
| Working temperature: | -40~65℃. |
| ESR: | 5/3.7/2.2mΩ |
| Leakage current | Less than 2.2/3.5/5.8mA |
| Charging and discharging time | More then 20000 times |
| Application | Energy storage/transportation car power/motor start /car start etc |
| Storage energy: | 3.9/7.2/21 wh |
| Maximum continuous current | 90/100/130A |
| Leakage current: | 2.2/3.5/5.8mA |
| MOQ: | 5 Cet |
| Specification | 16v 108/200/500f |
| SIZE: | 220*132*98mm/417*68*122(Two sizes with different length, width and height) |
This is a question that most people seek an answer to it. However, is it possible to replace batteries with supercapacitors? You will get the answer to this question right now. Supercapacitors have several advantages over batteries that make them a perfect replacement.
The Supercapacitors are much lighter; they charge faster; they are safer and non-toxic. The interior cell structure offers the supercapacitors the chance to get a high-energy storage density compared to the ordinary capacitors.
The supercapacitors release their energy rapidly because the discharge process does not involve any chemical reaction. Another advantage of supercapacitors is their ability to be recharged a vast number of times with negligible degradation. It can go to over a million charge/discharge cycles because no physical and chemical changes are involved.
The supercapacitors can be used in electric vehicles because of their high-drain ability. However, when it comes to other cars, batteries are suitable because batteries have a high energy density. The car needs to run for an extended period over a single charge.
The good thing with supercapacitors is that they are safe and less toxic because they contain a negligible amount of harmful chemicals or heavy metals that can explode like in batteries. Also, the supercapacitors have a much greater operating range than batteries.
They can also operate well in areas with adverse weather conditions because they operate within -40 and +65 degrees Celsius. The supercapacitors have several advantages that make them suitable for electric vehicles that require energy for a shorter period.
However, with further innovations, the supercapacitors will be made useful for all types of vehicles. The car and battery manufacturers are working day and night to develop ways to reduce pollution and reduce the cost of production.
The supercapacitors are much expensive than batteries because the materials used are a bit expensive. However, we should not let the price cover a lump sum of other advantages for these supercapacitors.
