Product Details:
|
| Type: | Super Capacitor Bank | Certificate: | RoHS/CE/ISO9001 |
|---|---|---|---|
| Cycle Life: | More Than 20000times | ESR (Equivalent Series Resistance): | 5 MΩ |
| Warranty: | 3 Years | Operating Temperature: | -40°C ~ 70°C |
| Package: | Cartons,Wooden Box Packing | Application: | General Purpose,Power,Automotive,AC / Motor |
| Capacitance: | 108F | Size / Dimension: | 220*132*98mm |
| Shipment Method: | By Sea And By Air | Capacitance Tolerance: | 20%or+20% |

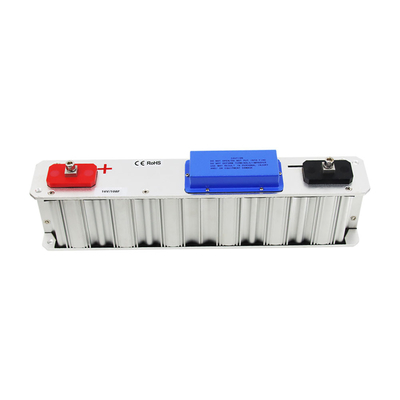

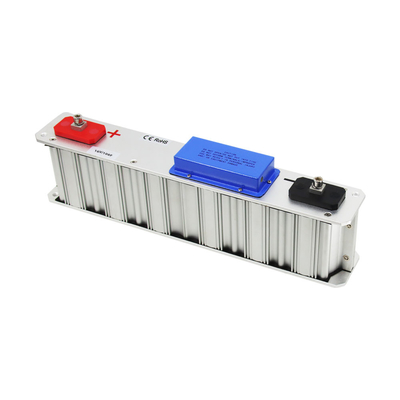

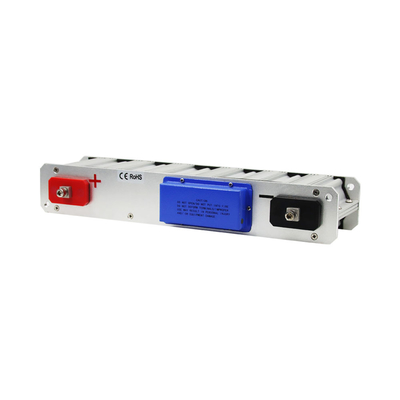

Super Capacitor Module 16v 108f Higher Energy Power Capacitor Bank For Vehicle System
| Model number: | GHT16V108FL/GHT16V200FL/GHT16V500FL |
| Place of origin: | Guangdong,Cn |
| Product name: | Super capacitor module/super capacitor pack |
| weight: | 2.7/3.5/5.3 kg |
| Working temperature: | -40~65℃. |
| ESR: | 5/3.7/2.2mΩ |
| Leakage current | Less than 2.2/3.5/5.8mA |
| Charging and discharging time | More then 20000 times |
| Application | Energy storage/transportation car power/motor start /car start etc |
| Storage energy: | 3.9/7.2/21 wh |
| Maximum continuous current | 90/100/130A |
| Leakage current: | 2.2/3.5/5.8mA |
| MOQ: | 5 Cet |
| Specification | 16v 108/200/500f |

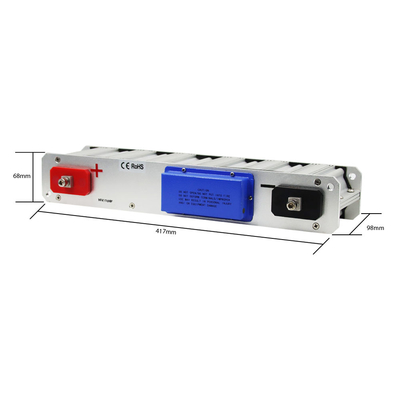

| SIZE: | 220*132*98mm/417*68*122(Two sizes with different length, width and height) |
Supercapacitors are already used to rapidly charge the power supplies in hybrid buses as they go from stop to stop. Currently, such chargers aren’t commercially viable to deliver on a mass scale, but as more people buy electric cars the charging infrastructure is likely to develop to a point that widespread supercapacitor chargers become a reality.
So we can expect to see supercapacitor charging points and wireless charging pads powered by them at stations, like the electrical equivalent of a petrol pump able to fill up a car in minutes.
To get a little sci-fi on things, such charging could be extended further with supercapacitors built into roads constantly delivering power to electric cars as they zip along and pause at traffic lights. Outside of dedicated lanes on motorways, such a vision might seem a little far-fetched.
But electric car systems, batteries, charging and tech are improving all the time, so the scope for supercapacitors to amp up future EVs is electrifying.
