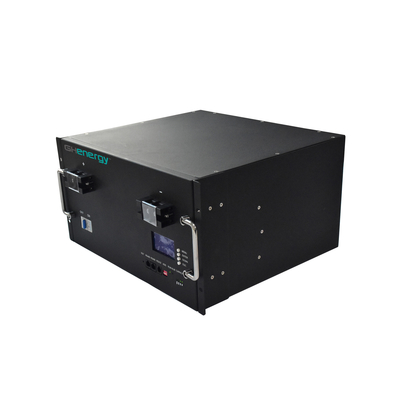

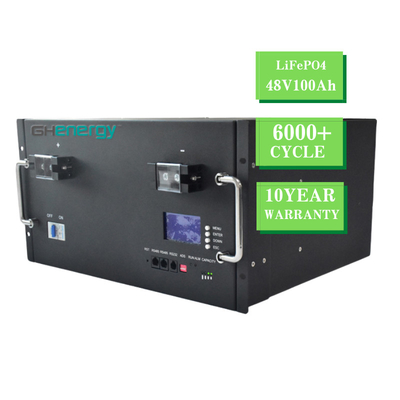

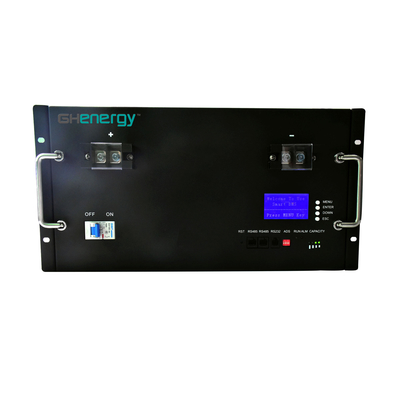

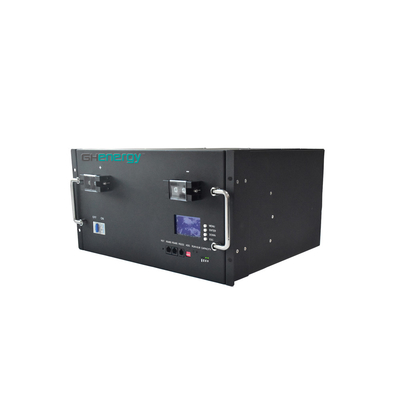

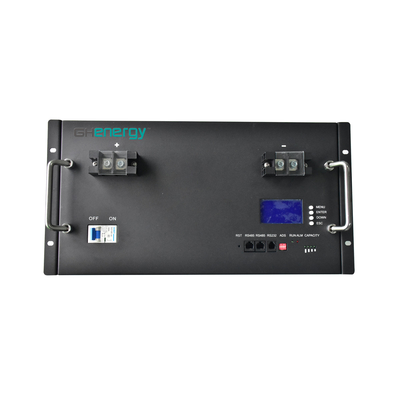

Product Details:
|
| Features: | Ultraportable | Type: | Li-Ion,LiFePo4,lifepo4/lithium Battery/li-ion Battery |
|---|---|---|---|
| Size: | Customized, 482*410*89mm/482*400*177mm/482*430*222mm/482*500*280mm | Cycle Life: | >6000Cycles |

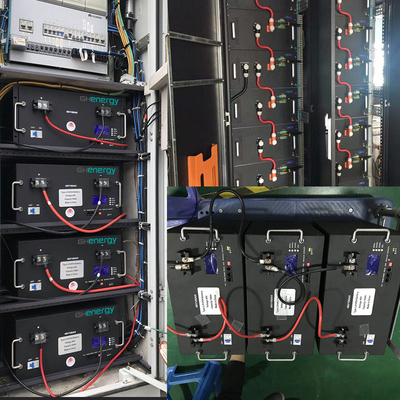

| Application: | Solar System/RV/yacht/golf Carts Storage And Car/UPS | Nominal Capacity: | 2.4Kwh/5.12Kwh/10.24Kwh/12.80Kwh |
| Nominal Voltage: | 48V | Warranty: | 5 Years |
| Color: | Black(customize) | Weight: | 24KG/46KG/80KG/100KG |
| Battery Type: | LiFePo4 | Oem/odm: | Accepatable,Yes |
| Shape: | Square-shaped | Capacity: | 50ah/100ah/200ah/250sh,customized |
| Compact Desiged: | With Built-in BMS | Battery Capacity: | With LED Indicator |
| Trasportation: | By Sea/By Air/By Express | ||
| High Light: | ROHS LiFePO4 Lithium Battery,Prismatic LiFePO4 Lithium Battery,Rechargeable Prismatic Lithium Battery |
||
|

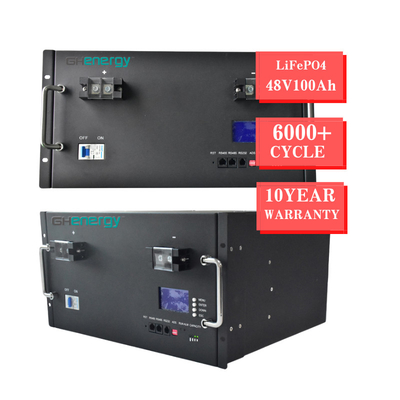

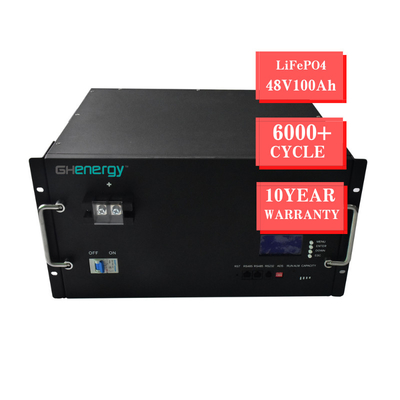

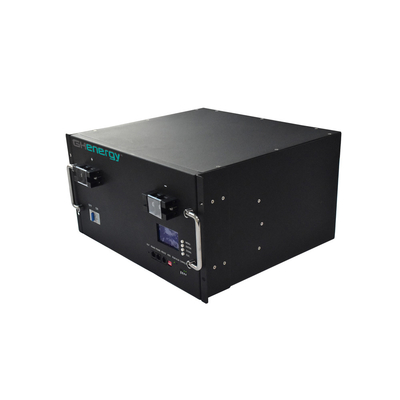

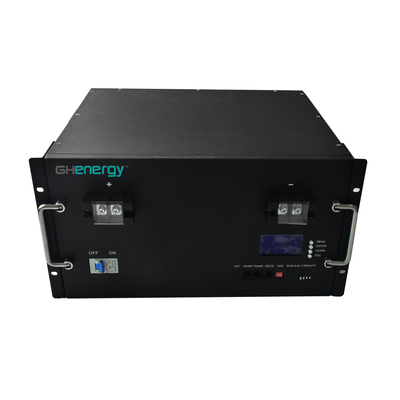

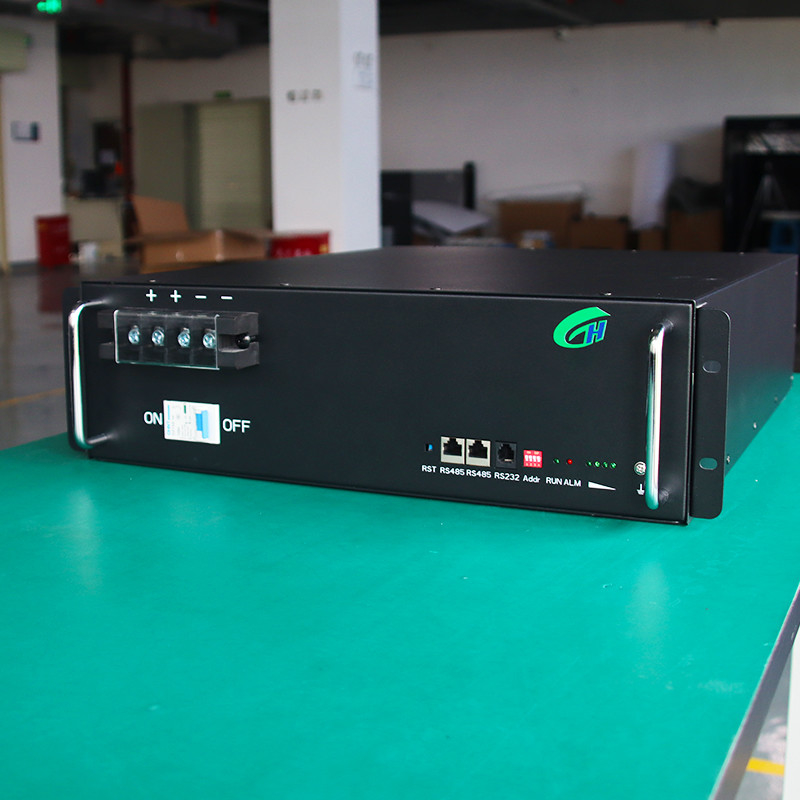

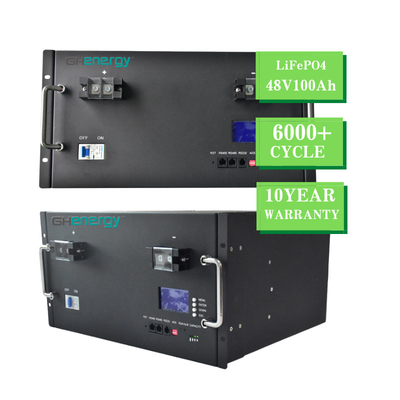

Model
|
GH2400
|
GH5000
|
GH9600
|
GH12000
|
|
Voltage
|
48 V
|
48 V
|
48 V
|
48 V
|
|
Capacity
|
50Ah
|
100Ah
|
200Ah
|
250Ah
|
|
Energy
|
2.4Kwh
|
5.12Kwh
|
10.24Kwh
|
12.80Kwh
|
|
Operation voltage
|
35.25-54.75 Vdc
|
37.6-58.4Vdc
|
||
|
Max.charging voltage
|
54.75Vdc
|
58.4 Vdc
|
||
|
Max.charging and discharging current
|
50A
|
100A
|
||
|
Max Power
|
2400W
|
5120W
|
7680W
|
12800W
|
|
Life time(25°C)
|
10 years
|
|||
|
Life cycles(80% DOD, 25°C)
|
6000 Cycles
|
|||
|
Enclosure protection rating
|
IP65
|
|||
|

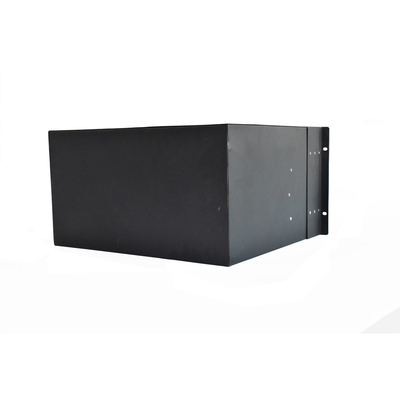

Dimensions(L×W×H)mm
|
482*410*89
|
482*400*177
|
482*430*222
|
482*500*280
|
|
Weight
|
24KG
|
46KG
|
80KG
|
100KG
|
|
Lithium Battery Standard
|
UL,IEC, UN38.3, ROHS,CE
|
|||
