Product Details:
|
| Product Model: | TC27500LU | Rated Capacitance: | 500F |
|---|---|---|---|
| Surge Voltage: | 2.85V | Energy Storage: | 0.5WH |
| Internal Resistance(AC): | ≤ 4 MΩ | Maximum Continous Current: | 20A |
| Peak DisCharge Current: | 550A | Leakage Current: | ≤ 1mA |
| Cycle Life: | ≥100,000 | Operating Temperature Range: | -40℃ ~ +65℃ |
| Product Weight: | 70g | ||
| High Light: | Multipurpose Car Super Capacitor,Rechargeable Car Super Capacitor,No Explosion Solar Super Capacitor |
||

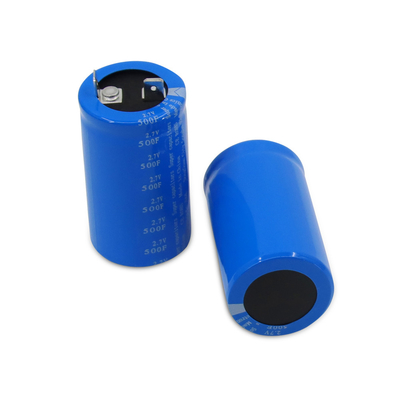

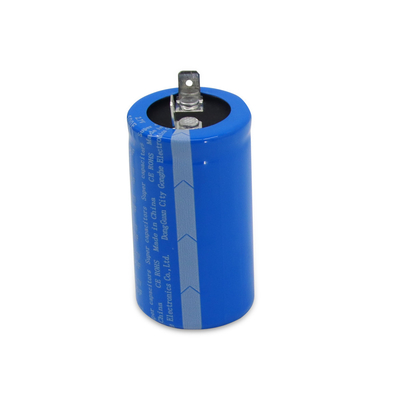

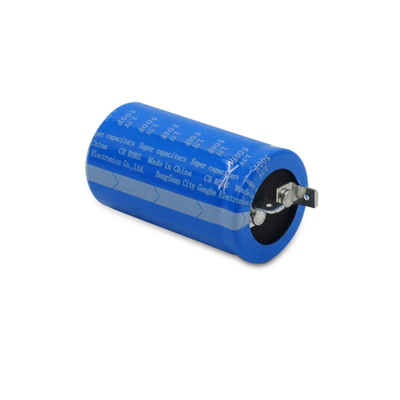

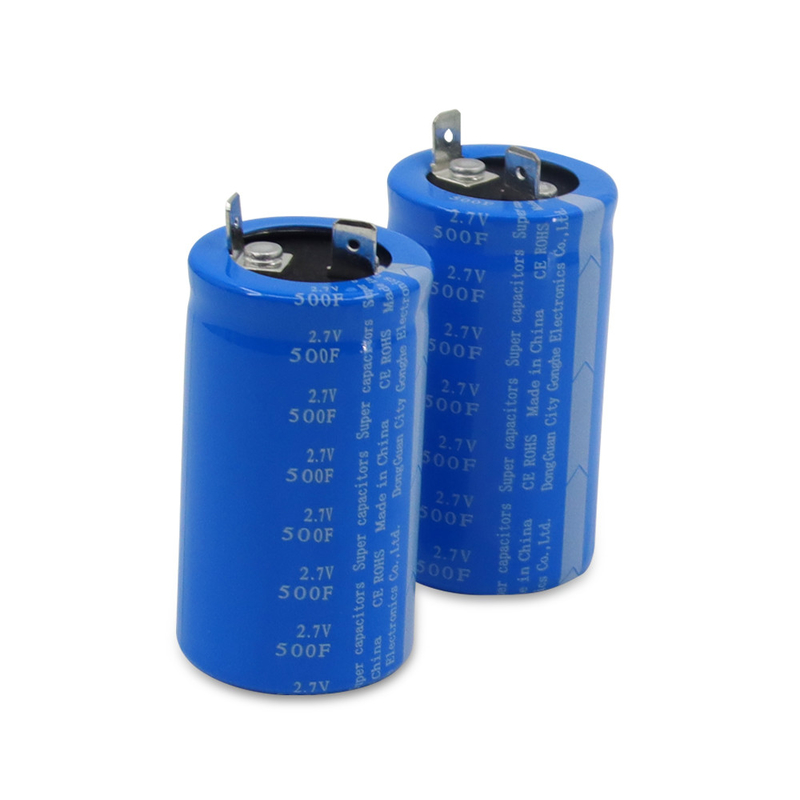

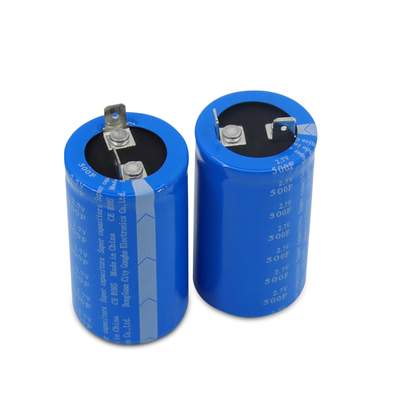

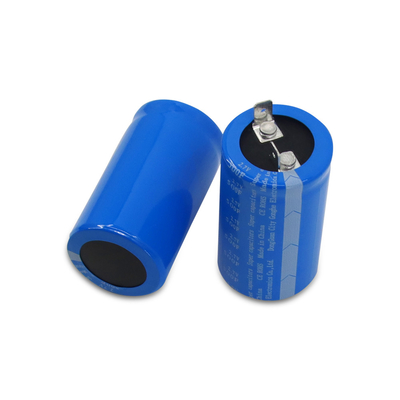

High Power Super Capacitor Cells Specification 2.7V 500F Φ35*65 mm TC27500LU
Super Capacitor Battery Features
- Fast charging
- Small self discharge
- High safety and reliabitity
- Low temperature performance
- Low long-term cost
- Long cycle life
High Safety And Reliability
- Nail Penetration Test: No Explosion, No Fire
- Vibration Test: No Explosion, No Fire
- Drop Test: No Explosion, No Fire
- Crush Test: No Explosion, No Fire
- Overcharge Test: No Fire, No Explosion
- Over Discharge Test: No Explosion, No Fire
Electric propelling applications:
Automotive energy system; low speed vehicle; intelligent robot; electric bicycle / motorcycle / scooter;
golf cart / trolley / sightseeing car /; electric tools
Energy storage field:
Solar street lamp; solar and wind power system; city on / off grid; community and family,
RV fleet, marine yacht
Back-up system and UPS:
Telecom base, CATV-system, computer server center, medical instrument, military equipment.
Other applications:
Security and electronics; mobile POS, mining light/torch/LED light emergency light.
