Product Details:
|
| Module Number: | C4218000P | Surge Voltage: | 4.25V |
|---|---|---|---|
| Energy Storage: | 75wh | Internal Resistance(AC): | 1.5mΩ |
| Normal Current: | 20A | Maximum Continuous Current: | 40A |
| Maximum Peak Current: | 60A | Leakage Current(mA/72hrs): | ≤20mA |
| Cycle Life: | ≥20000times | Operating Temperature Range: | -20℃ ~ +60℃ |
| Product Weight: | 350g | Protection Class: | IP30 |
| High Light: | 220mm Hybrid Vehicle Battery,7.5mm Hybrid Vehicle Battery,4.2V Hybrid Super Capacitor |
||

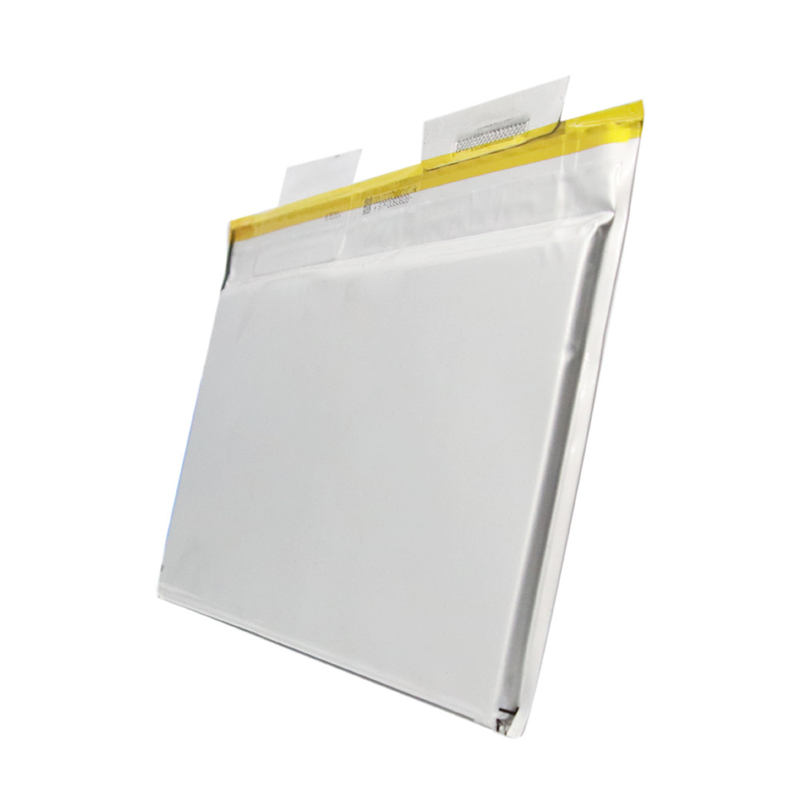

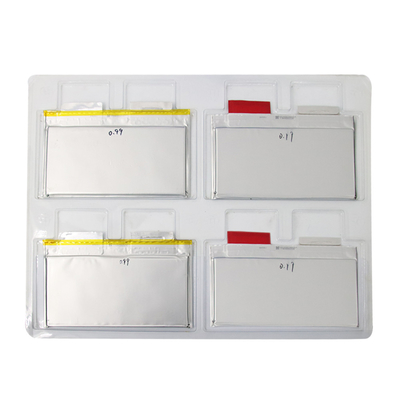

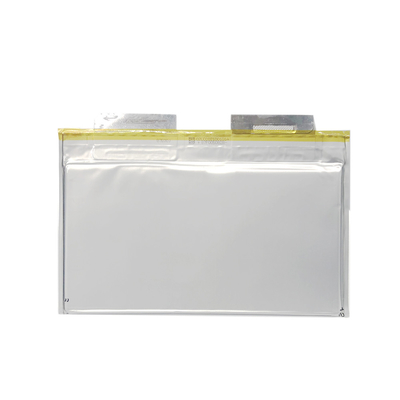

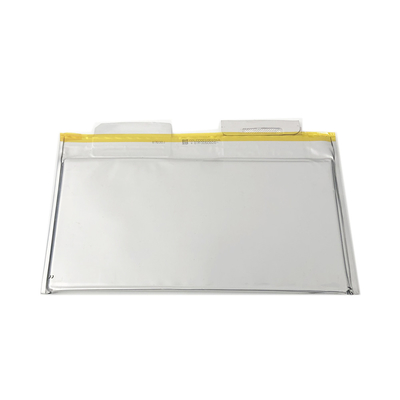

High Energy Super Capacitor Battery 4.2V 18000F 220*128*7.5mm
1. What is super capacitor?
Super capacitor is different from the traditional chemical power source.
It is a power source with special performance between the traditional capacitor and battery
3. What is it mainly used for?
Auto industry; Electrical tools; Electrical toys; Backup power supply etc.
3. Why is shipping cost is high?
Usually super capacitor is regard as battery in international logistics instead of common
goods, so freight charge is high in shipping 'battery'.
We can do 5 to 10 minutes fast charge
The number of cycles of deep charge and discharge
can reach 1 to 20,000 times, no "memory effect"
After 180 days full charge, SOC is more than 80%
Up to 70Wh/ KG
Wide temperature range -20 ℃ ~ + 60 ℃
Nail Penetration Test: No Explosion, No Fire
Electric propelling applications:
Automotive energy system; low speed vehicle; intelligent robot; electric bicycle / motorcycle / scooter;
golf cart / trolley / sightseeing car /; electric tools
Energy storage field:
Solar street lamp; solar and wind power system; city on / off grid; community and family,
RV fleet, marine yacht
Back-up system and UPS:
Telecom base, CATV-system, computer server center, medical instrument, military equipment.
Other applications:
Security and electronics; mobile POS, mining light/torch/LED light emergency light.
| MODEL NUMBER: | C4218000P |
| PLACE OF ORIGIN: | GUANGDONG,CN |
| TERMINAL: | SOFT PACK |
| SIZE: | 220*128*7.5MM |
| WEIGHT: | 350G |
| WORKING TEMPERATURE: | FROM -40 TO +70 |
| ESR: | 1mΩ |
| LEAKAGE CURRENT: | ≤20mA |
| CHARGING AND DISCHARGING TIME: | MORE THAN 20,000 TIMES |
| NORMAL CURRENT: | 20A |
| STORED ENERGY: | 75WH |
| MAXIMUM CONTINUOUS CURRENT: | 40A |
| MAXIMUM PEAK CURRENT: | 60A |
| MOQ: | 6PCS |
| SPECIFICATION: | 4.2V21000F |
